1.3.1.3 Packet Tracer - Skills Integration Challenge 364k2l

Packet Tracer – Skills Integration Challenge Topology

Addressing Table Device

Interface

IP Address

Subnet Mask

Default Gateway

G0/0.15

N/A

G0/0.30

N/A

G0/0.45

N/A

G0/0.60

N/A

S0/0/0

255.255.255.252

N/A

S0/0/1

255.255.255.252

N/A

S0/1/0

255.255.255.252

N/A

G0/0

N/A

S0/0/0

255.255.255.252

N/A

S0/0/1

255.255.255.252

N/A

G0/0

N/A

S0/0/0

255.255.255.252

N/A

S0/0/1

255.255.255.252

N/A

DH Assigned

DH Assigned

VLAN 60 NIC

DH Assigned

© 2017 Cisco and/or its s. All rights reserved. This document is Cisco Public.

Page 1 of 4

Packet Tracer – Skills Integration Challenge

VLANs and Port Assignments Table VLAN Number - Name

Port assignment

15 - Servers

F0/11 - F0/20

30 - PCs

F0/1 - F0/10

45 - Native

G0/1

60 - Management

VLAN 60

Network

Scenario This activity includes many of the skills that you have acquired during your CCNA studies. First, you will complete the documentation for the network. Make sure you have a printed version of the instructions. During implementation, you will configure VLANs, trunking, port security and SSH remote access on a switch. Then, you will implement inter-VLAN routing and NAT on a router. Finally, you will use your documentation to your implementation by testing end-to-end connectivity.

Documentation You are required to fully document the network. You will need a print out of this instruction set, which will include an unlabeled topology diagram: 

Label all the device names, network addresses and other important information that Packet Tracer generated.



Complete the Addressing Table and VLANs and Port Assignments Table.



Fill in any blanks in the Implementation and Verification steps. The information is supplied when you launch the Packet Tracer activity.

Implementation Note: All devices in the topology except , , and are fully configured. You do not have access to the other routers. You can access all the servers and PCs for testing purposes. Implement to following requirements using your documentation: 

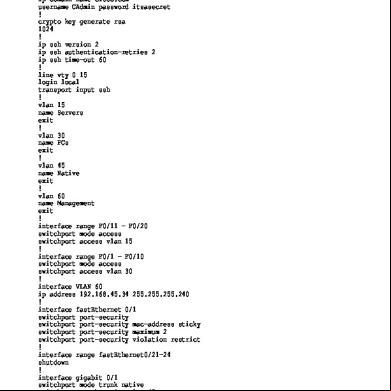

Configure remote management access including IP addressing and SSH: o

Domain is cisco.com

o

Enable secret ciscoen

o



o

Crypto key length of 1024

o

SSH version 2, limited to 2 authentication attempts and a 60 second timeout

o

Plaintext s should be encrypted.

with



Configure, name and assign VLANs. Ports should be manually configured as access ports.



Configure trunking.



Implement port security: o

On F0/1, allow 2 MAC addresses that are automatically added to the configuration file when detected. The port should not be disabled, but a syslog message should be captured if a violation occurs.

© 2017 Cisco and/or its s. All rights reserved. This document is Cisco Public.

Page 2 of 4

Packet Tracer – Skills Integration Challenge o

Disable all other unused ports.



Configure inter-VLAN routing.



Configure DH services for VLAN 30. Use LAN as the case-sensitive name for the pool.



Implement routing:



o

Use RIPv2.

o

Configure one network statement for the entire

o

Disable interfaces that should not send RIPv2 messages.

o

Configure a default route to the Internet.

address space.

Implement NAT: o

Configure a standard, one statement ACL number 1. All IP addresses belonging to the address space are allowed.

o

Refer to your documentation and configure static NAT for the File Server.

o

Configure dynamic NAT with PAT using a pool name of your choice, a /30 mask, and these two public addresses:



has received full addressing information from

.

Verification All devices should now be able to ping all other devices. If not, troubleshoot your configurations to isolate and solve problems. A few tests include: 

remote access to



VLANs are assigned to appropriate ports and port security is in force.



a complete routing table.



NAT translations and statics.



by using SSH from a PC.

o

Outside Host should be able to access File Server at the public address.

o

Inside PCs should be able to access Web Server.

Document any problems you encountered and the solutions in the Troubleshooting Documentation table below.

© 2017 Cisco and/or its s. All rights reserved. This document is Cisco Public.

Page 3 of 4

Packet Tracer – Skills Integration Challenge

Troubleshooting Documentation Problem

Solution

Suggested Scoring Rubric Packet Tracer scores 75 points. Documentation is worth 25 points.
